Description

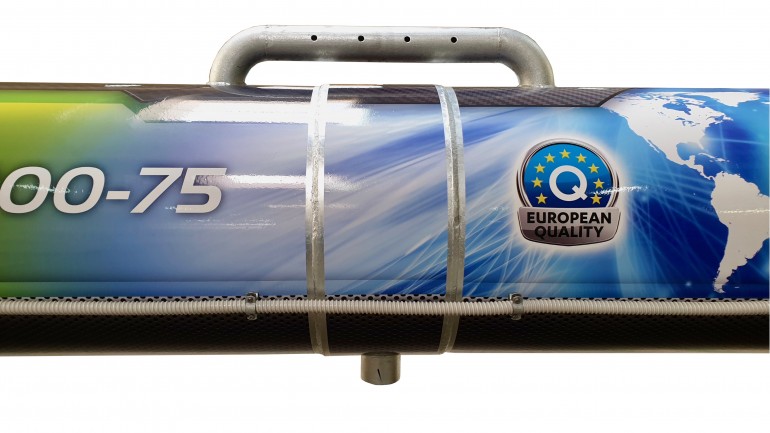

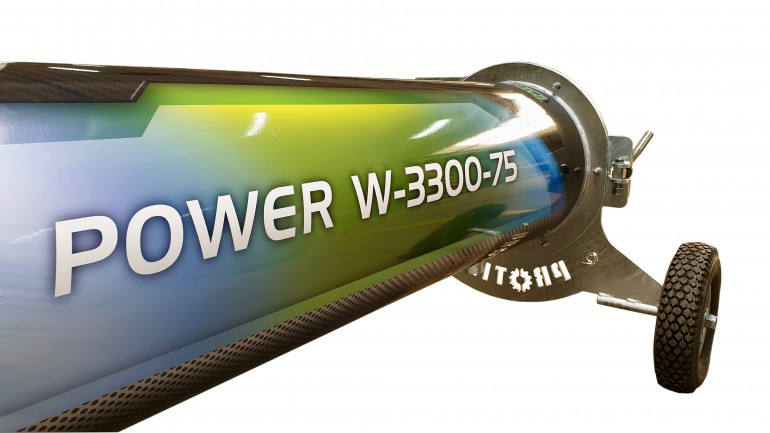

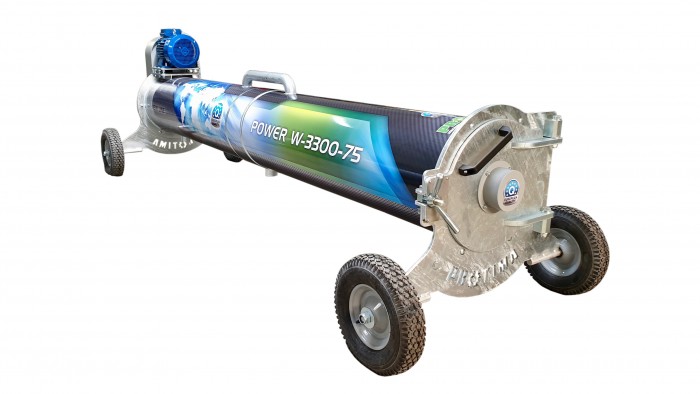

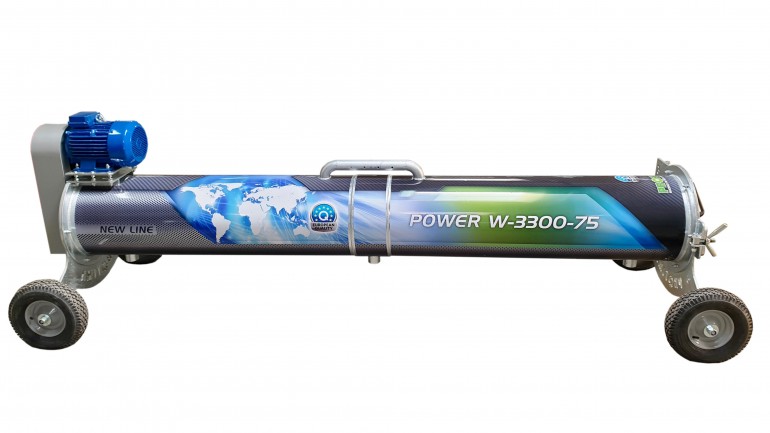

The Rug Centrifuge W-3300-75 is specifically designed
for high-volume rug washing facilities that need quick and thorough drying
systems. This model can handle rugs up to 10 feet 9 inches in width, and the

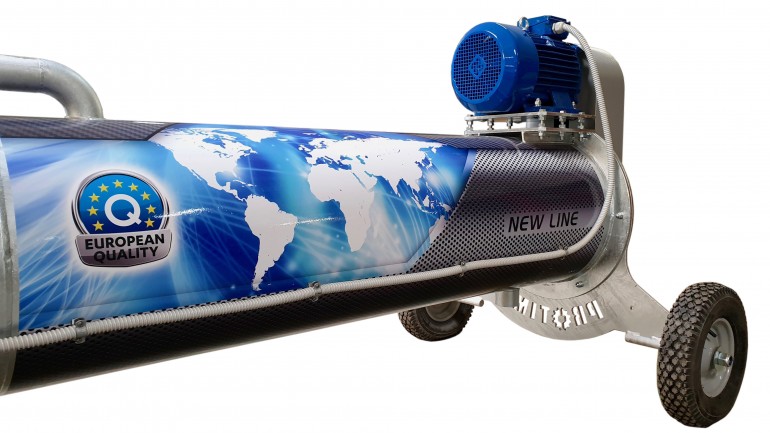

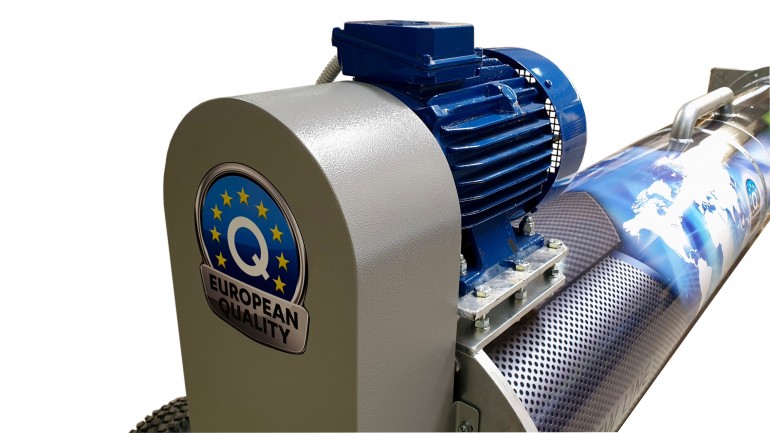

engine controlled by an inverter can easily handle rugs weighing hundreds of
pounds.
The design is sleek with a reduced number of welded parts,
allowing easy unscrewing and changing of parts without requiring the expensive
and time-consuming repair of entire components. Protima is the only rug cleaning
manufacturer that uses uniform seamless stainless steel drums. These drums are
electronically balanced to provide incredibly quiet and vibration-free
operation. The Protima innovative bearing design creates longer life under high
production use and eliminates the downtime and expensive repair cost of
frequent bearing repair and replacement associated with the designs of some of
our competitors’ machines.

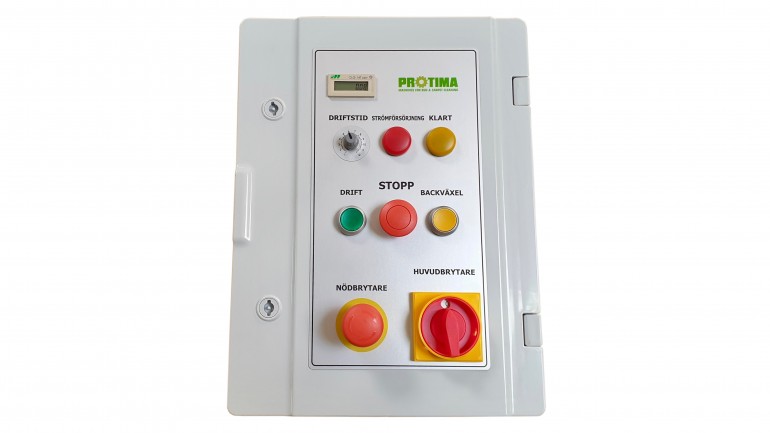

Operation with a clearly labeled control box. Safety-focused

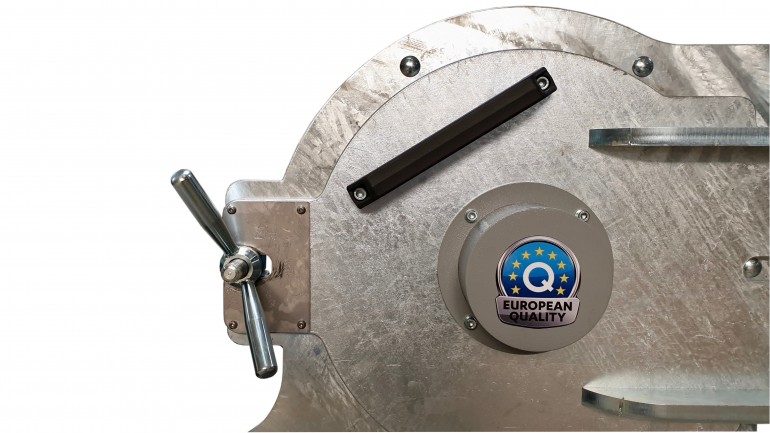

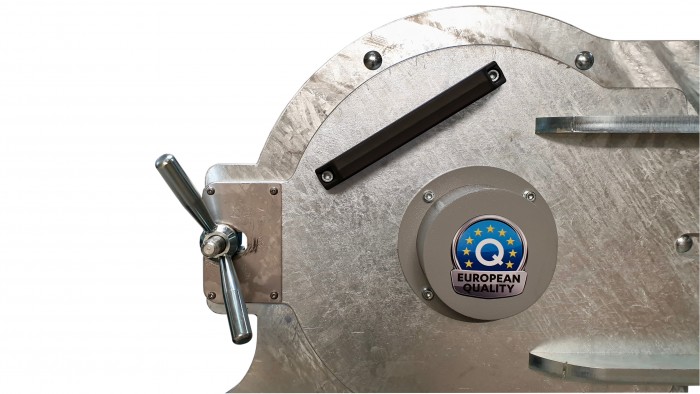

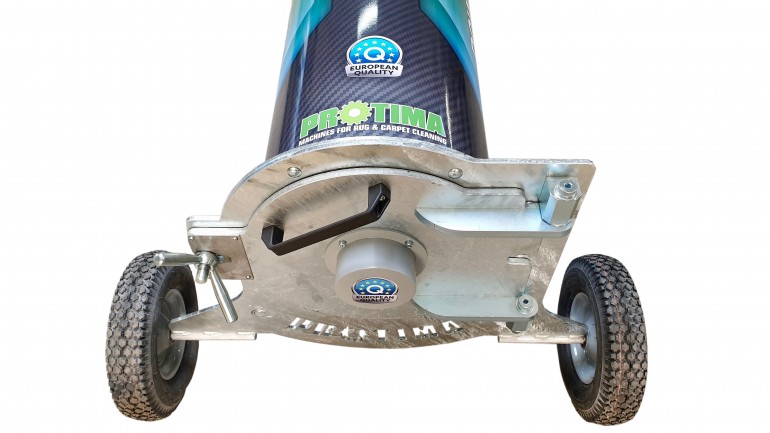

design prevents operation with the door open. Wheel design allows for
mobility. Upon request, it is possible
to brand the machine with your laser-cut logo and decal application.
Key Advantages
Technical Data
Maximum Rug Width:
10.83
Working capacity:
1614 sq ft per hour sq ft per hour
Length:
12.63 feet
Width:
3.94 feet
Height:
3.94 feet
Weight:
1036.25 lbs
Drum Diameter:
15.75 inches
Outer Drum Diameter:
19.69 inches
Drum Material:
Stainless Steel
Outer Material:
Hot-Dip Galvanizing
Loading Height:
13.78 inches
Number of Water Drains:
3
Water Drains Diameter:
2.95 inches
Suspension:
wheels
Engine Power:
10 HP
Engine:
1200 rpm
Power Supply:
32A 5P 400V
Inverter:
yes
Running Time Counter:
yes
Timer:
yes
Reverse Gear:
yes
Warranty:
12 months
Extended Warranty:
optional
